Solis On Grid Inverters
Supported Devices
| Device Type | Modbus TCP (Ethernet) | RS485 | Curtailment |
|---|---|---|---|
| S5-GR3P(3-20)K | ✅ (only with Solis data logger) | ✅ | ✅ |
| S5-GC(25-40)K | |||

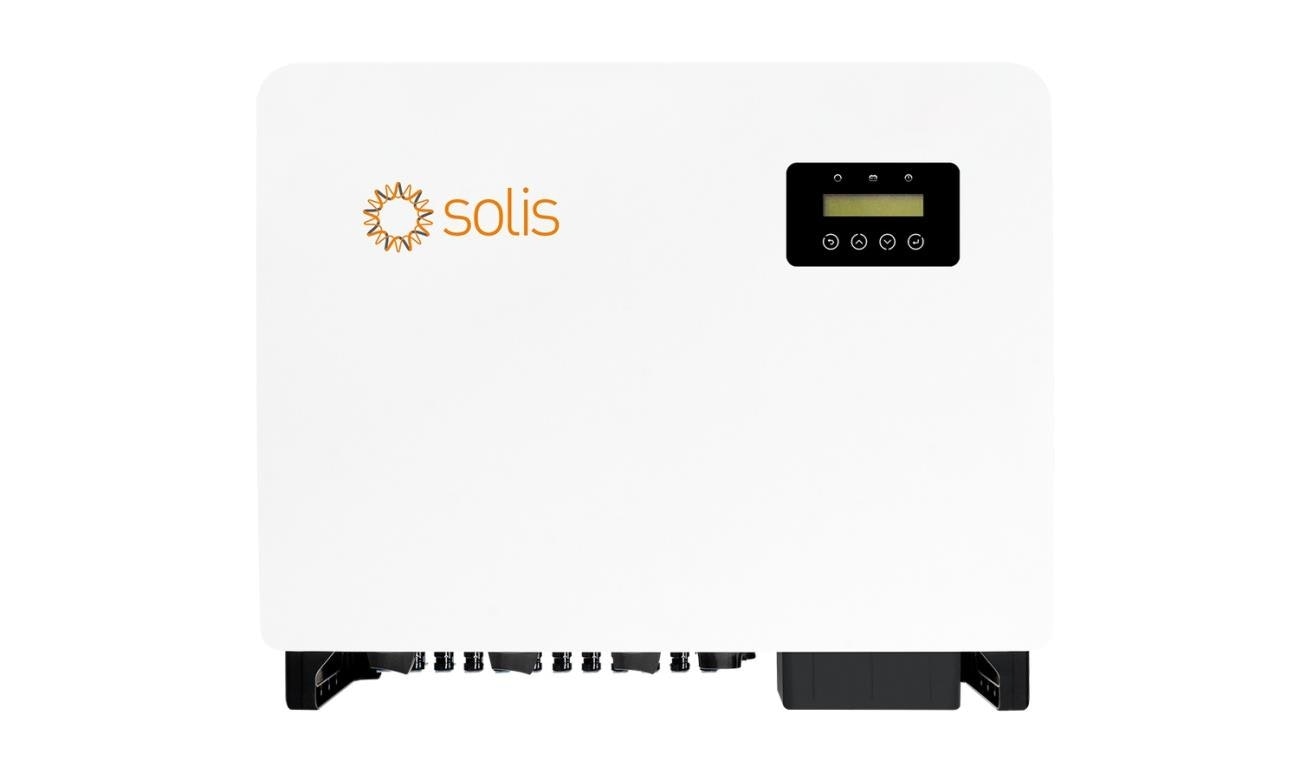

| S5-GC(50-60)K | |||
| S5-GC80K | |||
| S5-GC(100-110)K | |||
| S6-GR1P(0.7-3.6)K-M | |||
| S6-GR1P(2.5-6)K | |||
| S6-GR1P(7-8)K02-NV-YD-HC | |||

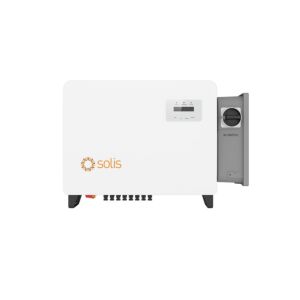

| S6-GC3P(40-60)K-NV-ND | |||
| S6-GC(80-125)K | |||
| S6-GC3P150K07-NV-ND | |||
| S6-GU350K-EHV | |||
| 100-125K G5 | experimental | ||
| Solis-80K-5G-PRO | ✅ (only with Solis data logger) | ||
| Solis-255K-EHV-5G-PLUS |
Wiring
RS485
Warning
NOTE: RS485 Device Addresses
- You MUST give each device on the RS485 bus a unique address. Check the manual of the device on how to do this.
- Use lower addresses first (1, 2, ...) because the SmartgridOne Controller will find them faster!
- For each device, it is generally recommended to stick with the factory default baud rate, parity, and stop bits. The SmartgridOne Controller will scan on those first.
| Model | Page |
|---|---|
| S5-GR3P(3-20)K | Wiring configuration for S5/S6 Series |
| S5-GC(25-40)K | |
| S5-GC(50-60)K | |
| S5-GC80K | |
| S5-GC(100-110)K | |
| S6-GR1P(0.7-3.6)K-M | |
| S6-GR1P(2.5-6)K | |
| S6-GR1P(7-8)K02-NV-YD-HC | |
| S6-GC3P(40-60)K-NV-ND | |
| S6-GU350K-EHV | |
| 100-125K G5 | Wiring configuration for Industrial PV installation |
| Solis-80K-5G-PRO | |
| Solis-255K-EHV-5G-PLUS |
By default, the inverter is set to address 1. This can be changed via the display of the inverter. You can find the procedure in chapter 7.3.2 of the manual.
