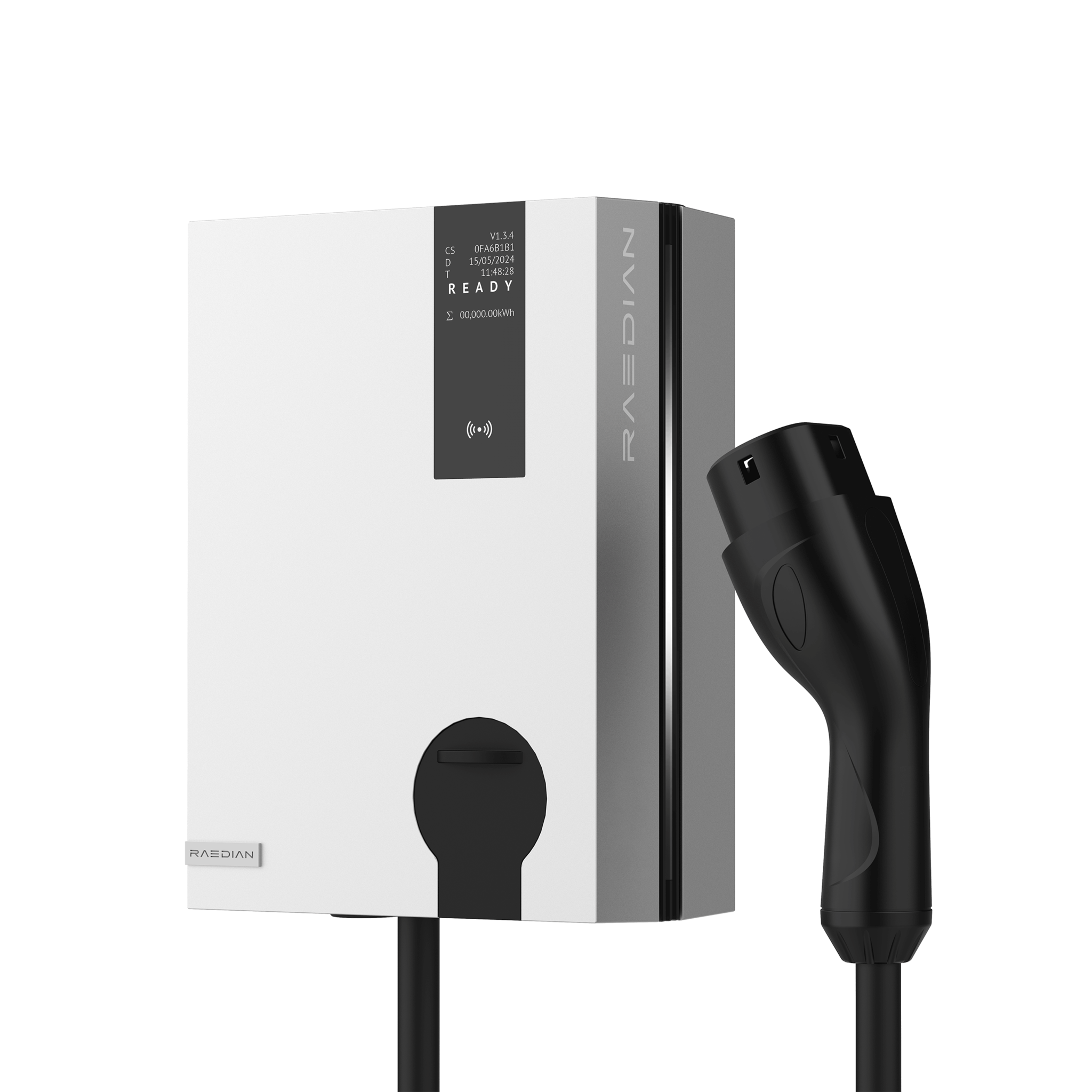

Raedian charging stations
Supported Devices
| Device Type | Modbus TCP (Ethernet) | RS485 |
|---|---|---|
| Raedian NEO | ❌ | ✅ |
| Raedian NEX | ✅ | ❌ |
| Device Type | Modbus TCP (Ethernet) | RS485 |
|---|---|---|
| Raedian NEO | ❌ | ✅ |
| Raedian NEX | ✅ | ❌ |
For correct ethernet wiring: Follow the .
| Device | SmartgridOne Controller model OM1 | SmartgridOne Controller model IG8 | RS485-USB converter | RS485-Ethernet converter |
|---|---|---|---|---|
| A | RS485 A | RS485_POS | RS485 A | TX+ |
| B | RS485 B | RS485_NEG | RS485 B | TX- |
| GND | RS GND | GND | Not available | G |
Ensure the termination resistor is set correctly if the charger is at the end of the RS485 bus.
After the electrical installation is complete, you need to configure the charger using the Raedian App.
To allow the SmartgridOne Controller to control the NEO charger via Modbus RTU:
To allow the SmartgridOne Controller to control the NEX charger via Modbus TCP:
502.
